Required Tools:

1. 1.5mm Hex Wrench

2. Pry Tool

Replacement Steps

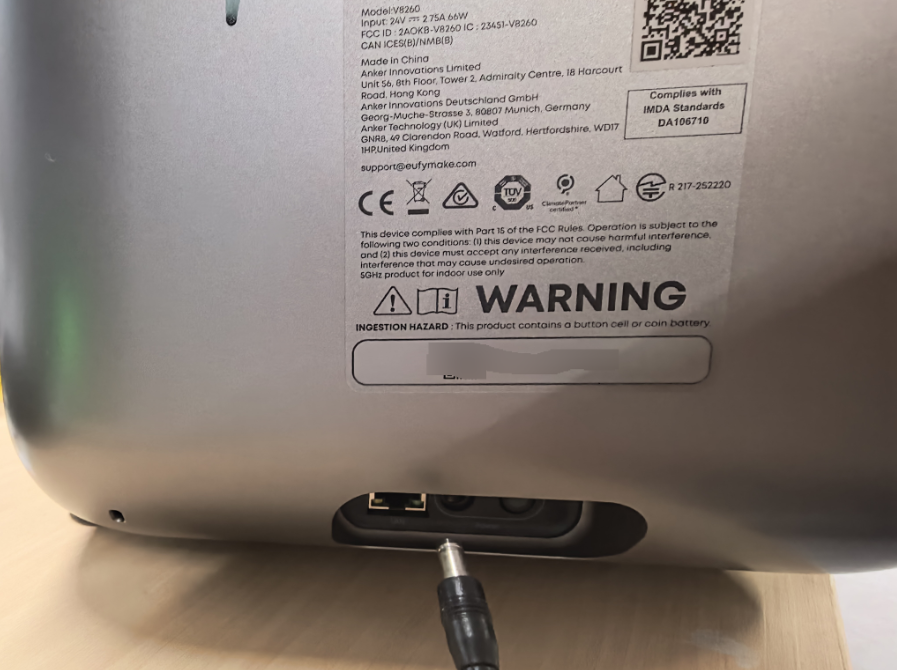

1. Disconnect the printer from power.

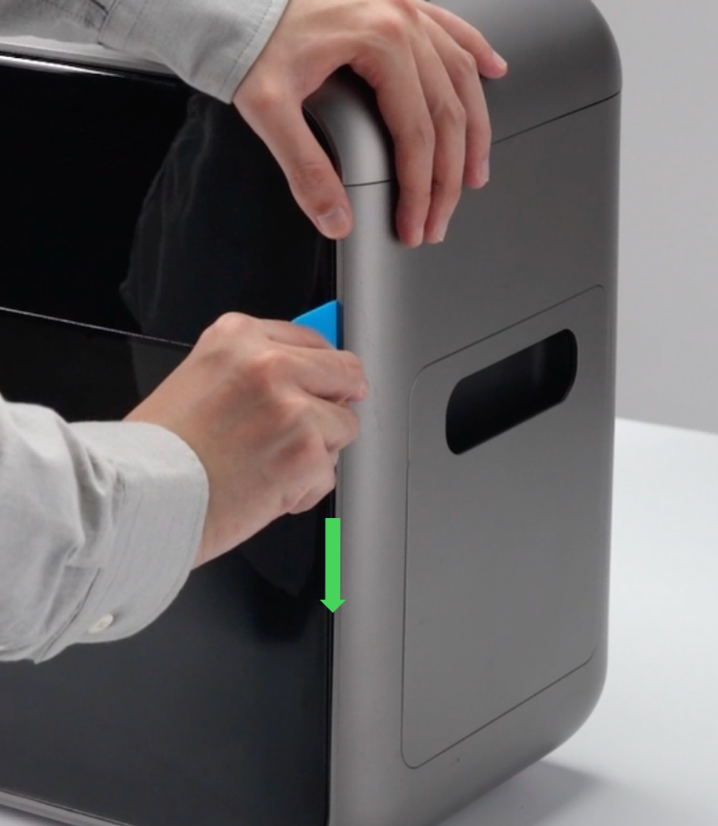

2. Refer to the SOP to remove the printer's right side cover. https://support.eufymake.com/s/article/Printer-Cover-Disassembly-and-Assembly-SOP

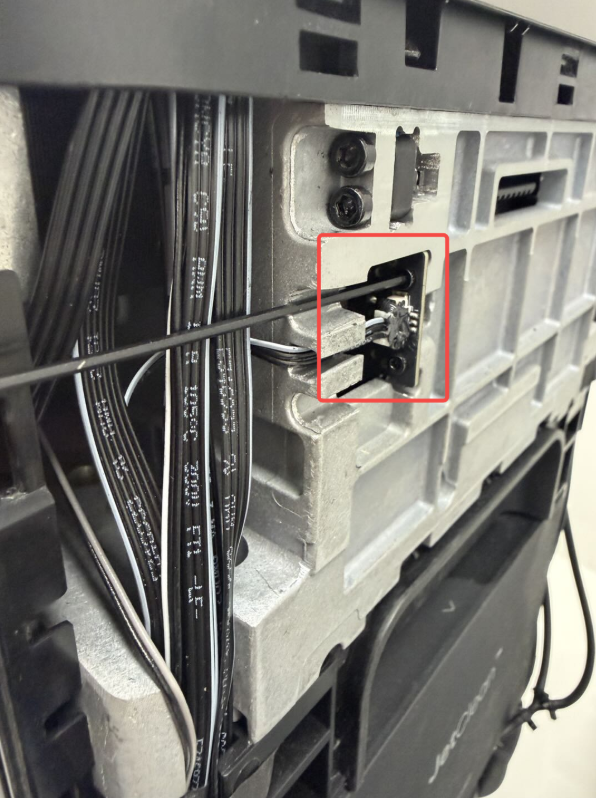

3. Locate the X-axis photoelectric switch and use the hex wrench to loosen the two securing screws.

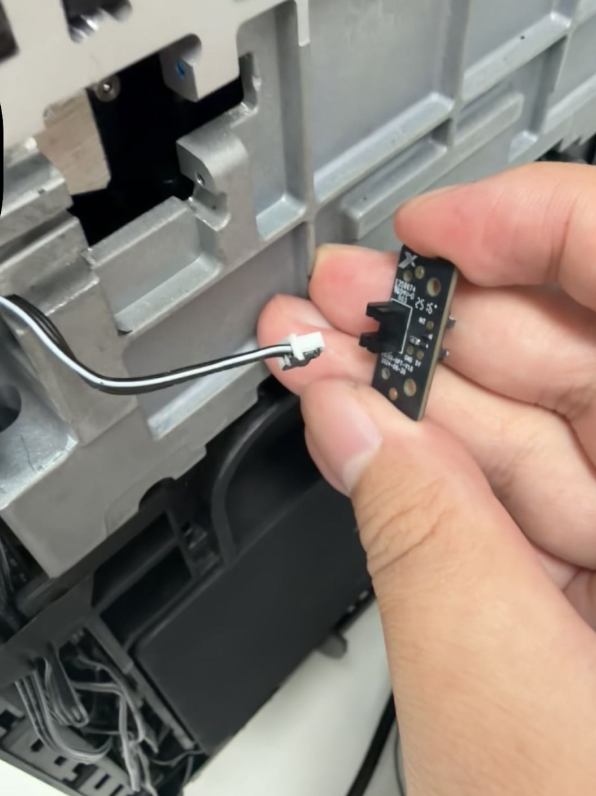

4. Disconnect the wiring cable from the photoelectric switch.

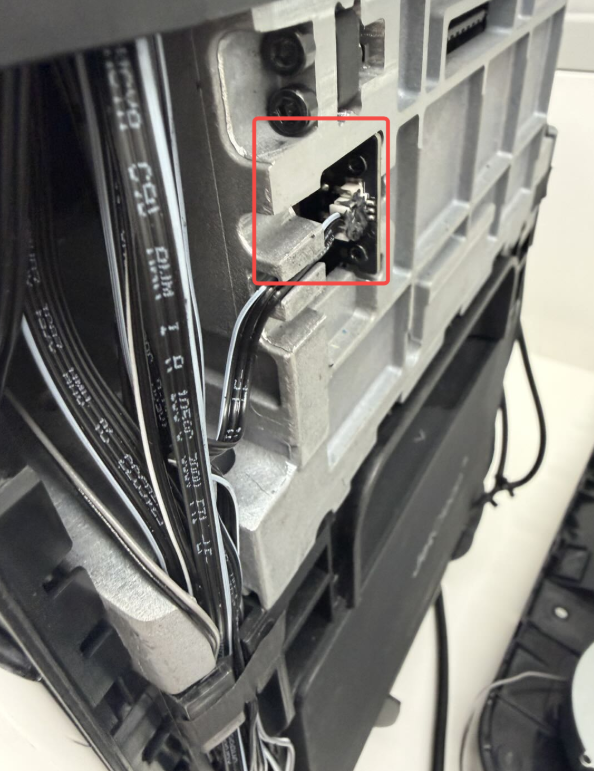

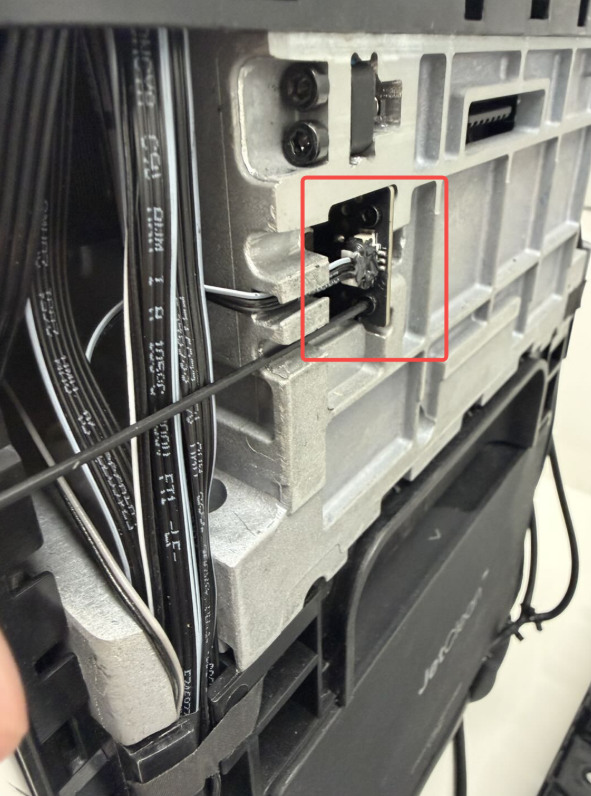

5. Install the new photoelectric switch and reconnect the wiring cable.

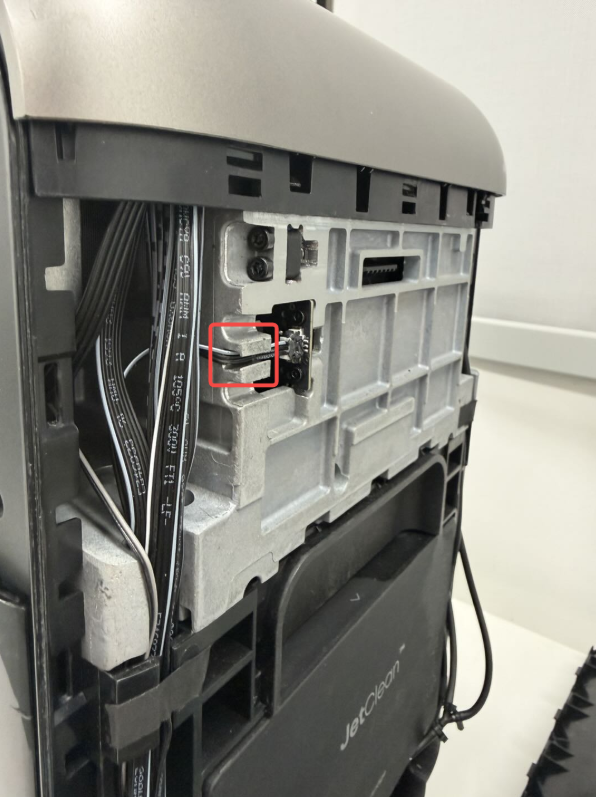

Ensure the connector faces to the right, and route the flat cable back into the wire channel correctly.

6. After installation is complete, reconnect the printer to power and check whether any X-axis error codes appear during self-test.

If the printer operates normally, reinstall the right side cover.

Support Contact

If the issue persists after completing the above steps, please contact eufyMake Customer Support at support@eufymake.com with the following information:

• Your Order Information

• Printer SN. Please refer to:https://support.eufymake.com/s/article/How-to-Check-the-Device-Serial-Number-SN

• Printer and App Logs. Please refer tohttps://support.eufymake.com/s/article/Log-Upload-Process-App-PC-Overview

• Relevant photos and videos.
