Printer Operating Environment Requirements
Based on the ink requirements during printer operation and the printing process, please ensure the printer is used in an appropriate environment.
|
Working environment humidity |
Relative humidity 20%-85% |
|
Working environment temperature |
15℃-35℃（59℉-95℉） |
Space Requirements for Printer PlacementPrinter Dimensions and Weight
The basic dimensions of the printer are as follows. Please reserve enough space and ensure adequate load-bearing capacity according to these specifications.
|
Product Dimensions |
595mm(W)*242mm(D)*395mm(H) |
|
Product Weight |
15KG (up to 25 kg when loaded with ink and accessories) |
PrinterPlacement Requirements

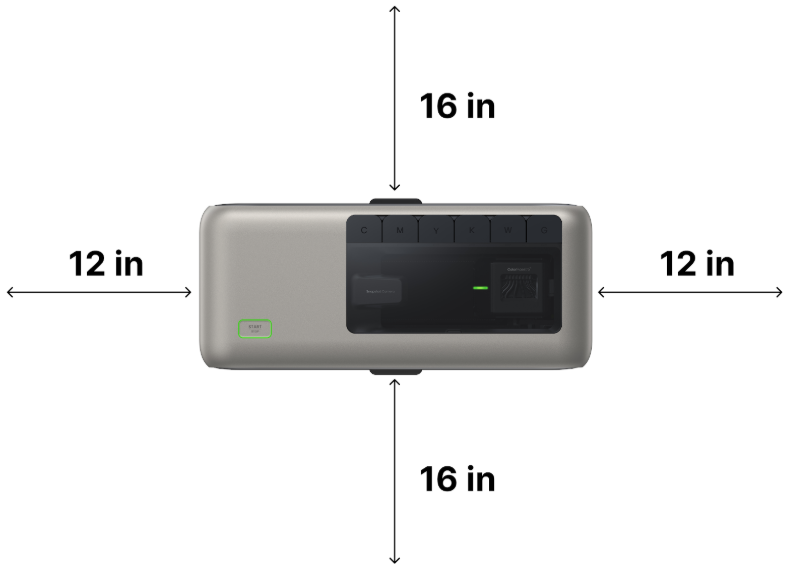

When using the standard platform board, at least 16 inches of space should be reserved both in front of and behind the printer during operation. This ensures the front door can fully open and printed materials can be handled easily.
Additionally, space should be reserved on the sides:
-
Right side: At least 12 inches for cartridge removal and cleaning
Left side: Space required for the power cord connection
-
Avoid placing the printer directly against walls on either side to prevent ink from contaminating the wall surface.
-
The tilt angle of the printer must be less than 10°.
-
Caution: Please Do not place the printer where pets or children can reach it.
