Installation instructions after unpacking the printer

Step 1 - Connect the power supply

Connect the adapter and power cord - the device will power on automatically once connected.

⚠️Note: Double check that the power supply and plug type match your region’s requirements.

Step 2 - Install the Ink Cartridge

1. Check the ink cartridge for its expiration date, ensure the packaging is intact, and confirm there are no signs of ink leakage.

2. Install the ink cartridge: After removing it from the packaging, refer to the figure below and press to insert the cartridge into place.

⚠️ Note: If the cartridge does not slide in smoothly, do not force it — doing so may cause damage.

Step 3 - Install the cleaning cartridge

1. Remove the cleaning cartridge exterior panel by pulling it outward from the handle, as shown below.

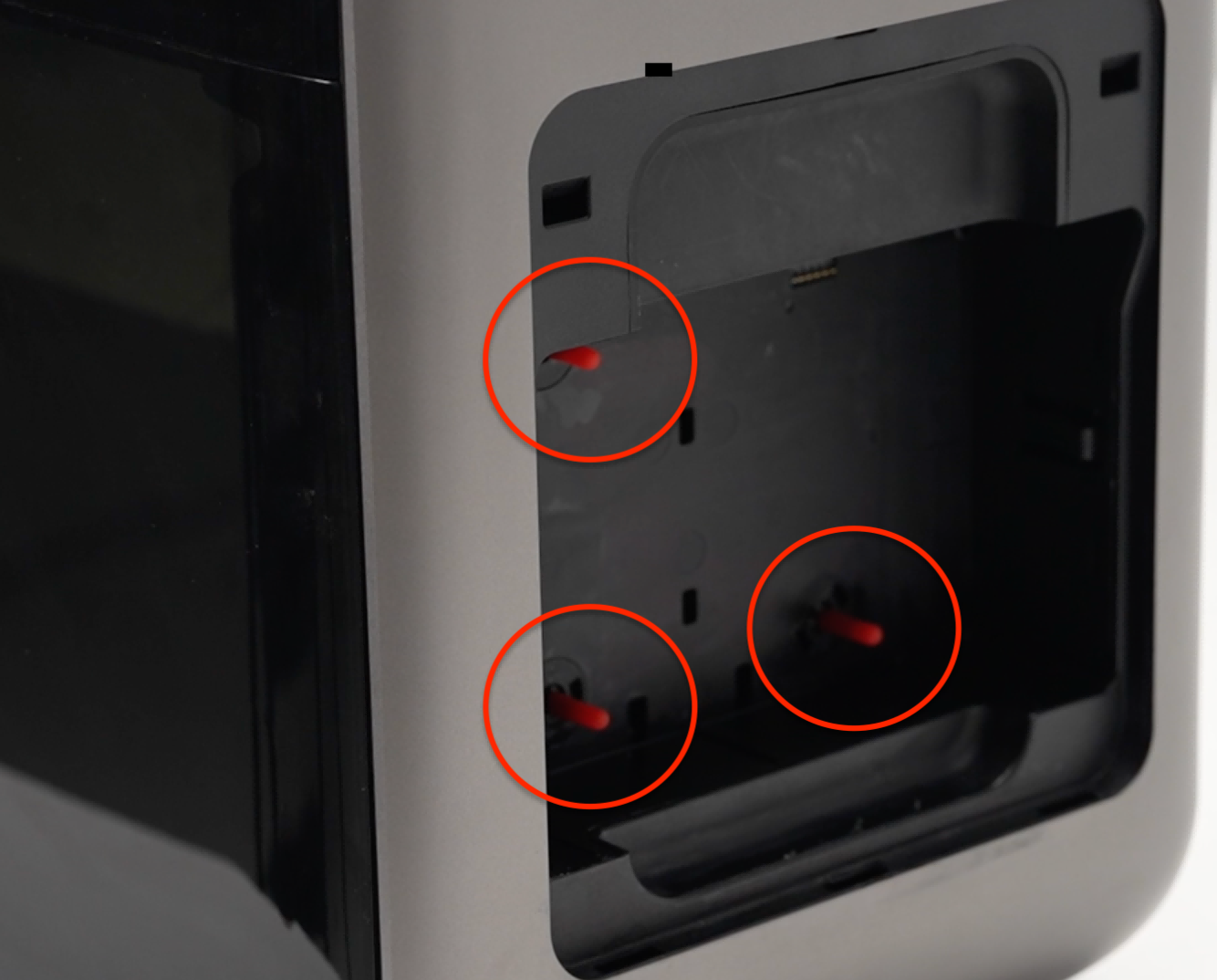

2. Pull out the rubber plugs inside the cleaning box.

⚠️The cleaning cartridge cannot be installed without removing the rubber plugs. Do not skip this step!

3. Install the cleaning cartridge, ensuring that the cartridge is oriented correctly.

4. Snap the cleaning cartridge exterior panel back on.

Step 4 - Install the air filter

1. Remove the magnetic front cover of the device.

2. Push in the air filter.

3. Snap the magnetic front cover back on and listen for a click to complete the installation.
