Introduction
As a creative tool, the eufyMake UV Printer E1 includes several moving parts, such as fans and motors. It’s normal to hear a range of operating sounds while the machine is running. The sections below outline the components that may produce noise and the types of sounds you may hear.
|
Type
|
Device
|
Timing of sound generation
|
Sound Position
|
Pictures
|
Sound Types
|
Possible Abnormal Noise Types
|
|
Fan
|
Motherboard Cooling Fan
|
After turning on the device
|

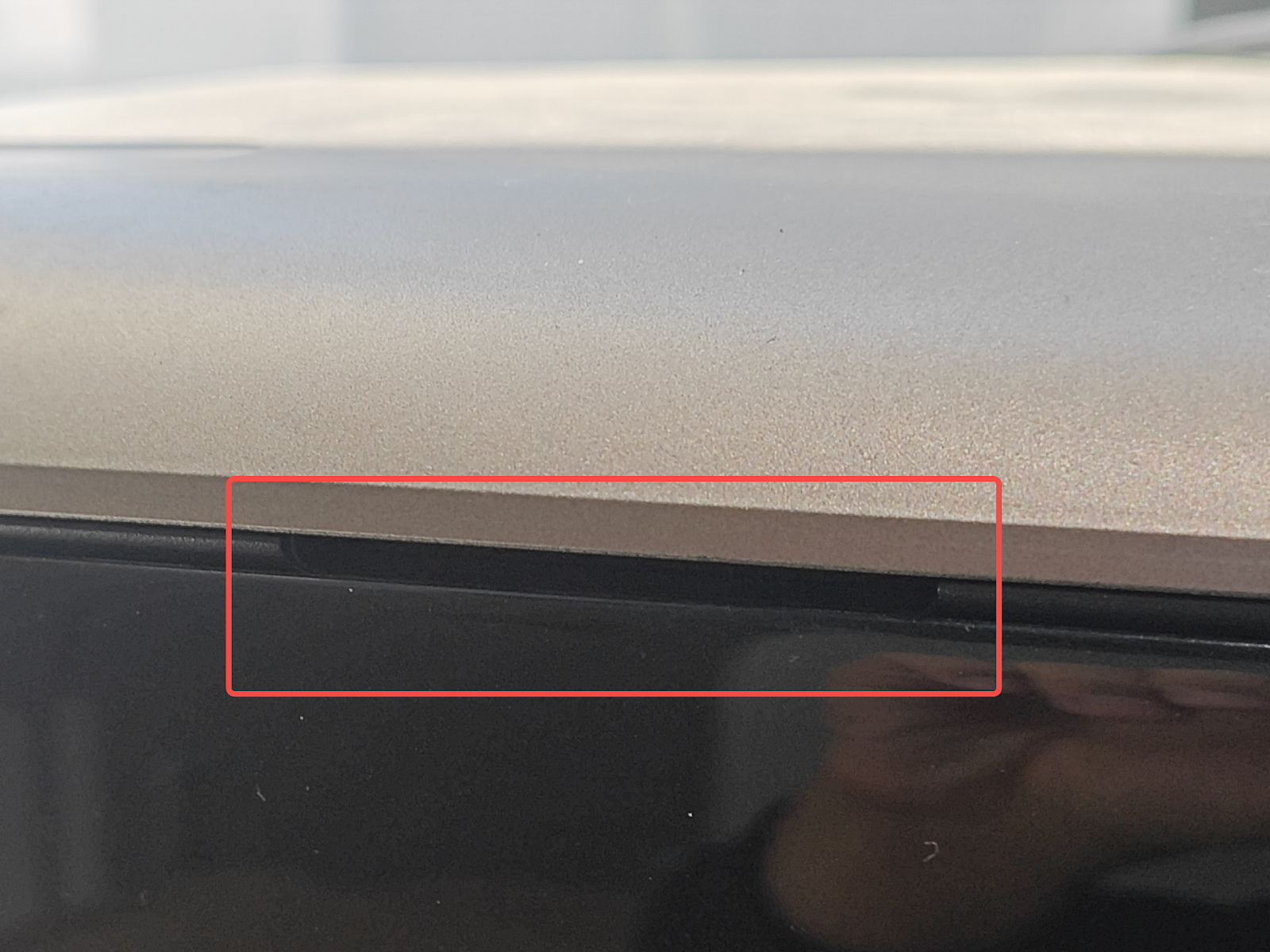

Seam between the front air filter cover plate and the top cover
|
|
Continuous fan sound
|
Fan damage causes abnormal noise
|
|
UV lamp cooling fan
|
From the initiation of printing to the end of printing
|

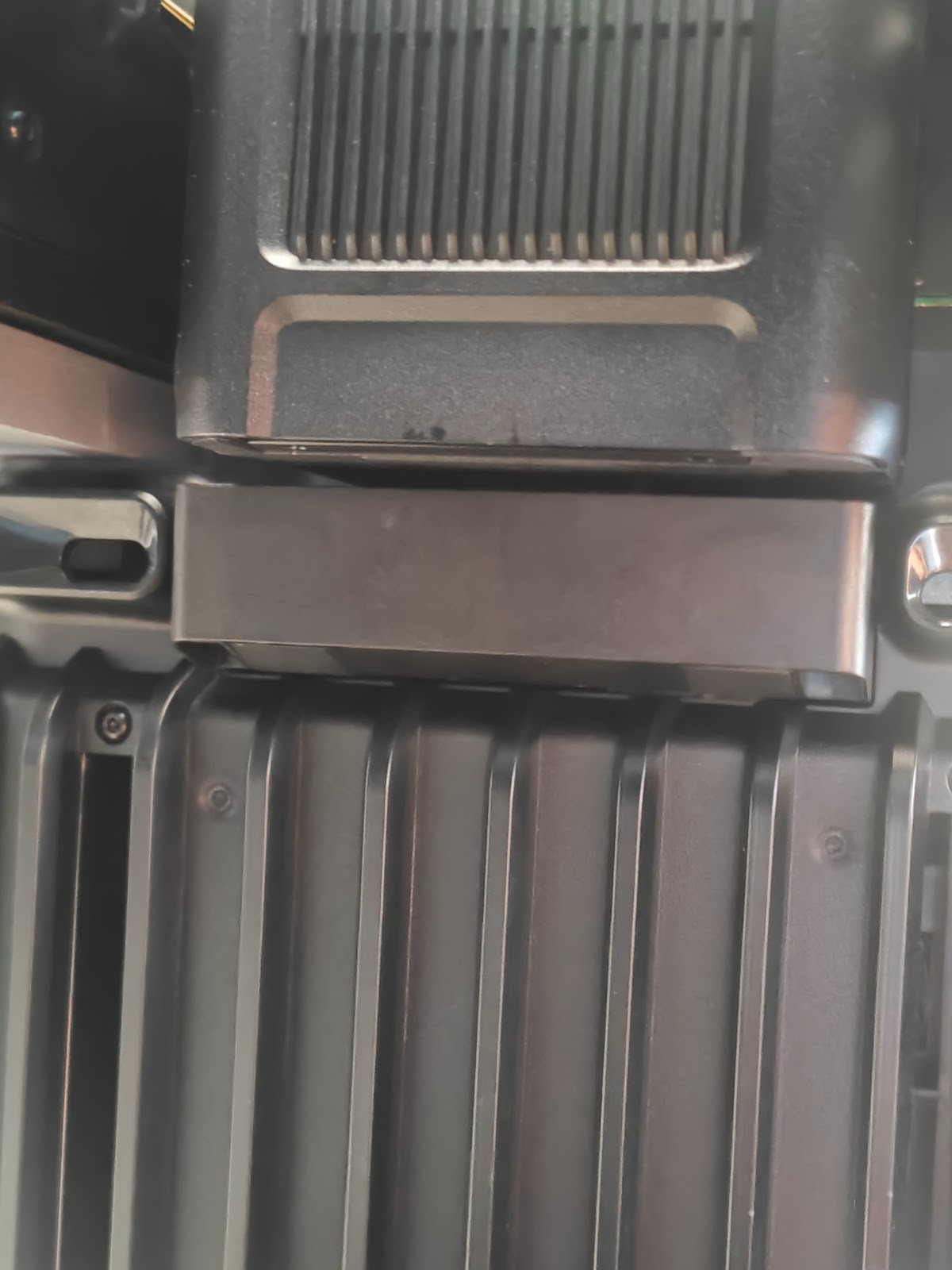

Spray Head UV Lamp
|
|
|
Air Filter Fan
|
After turning on the device
|

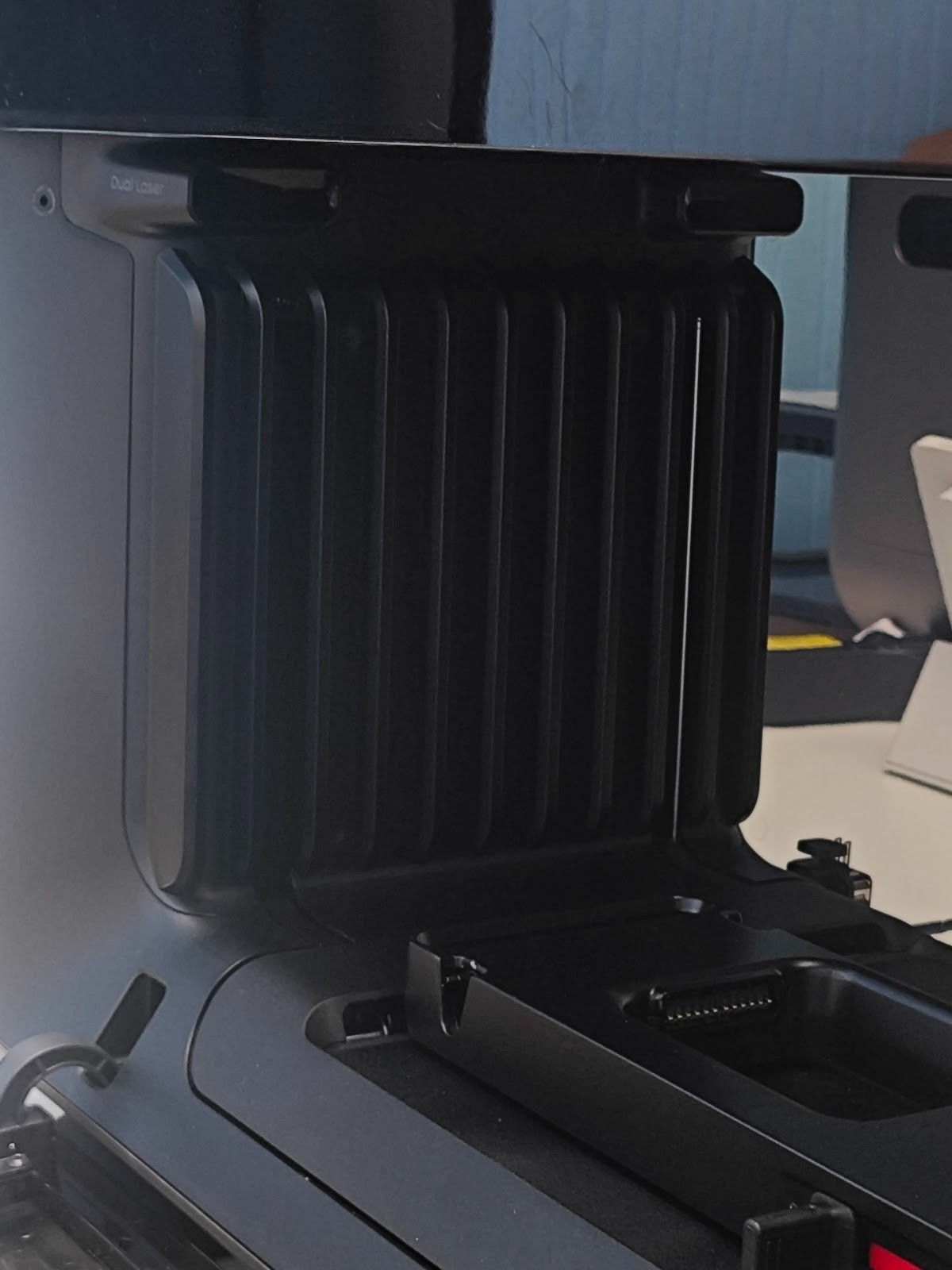

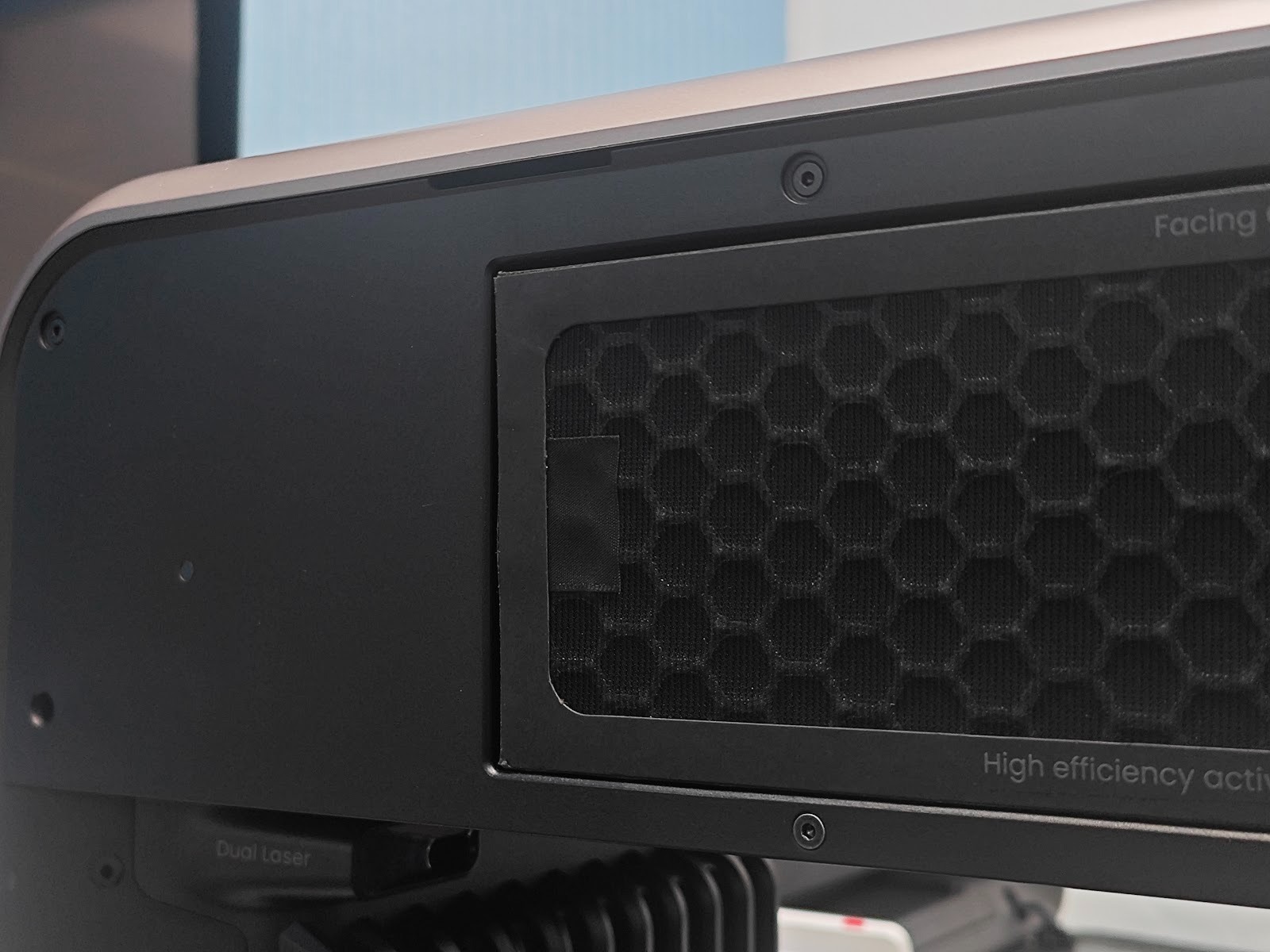

Below the front air filter cover plate
|
|
|
Motor
|
X-axis
|
During self-check and printing process
|

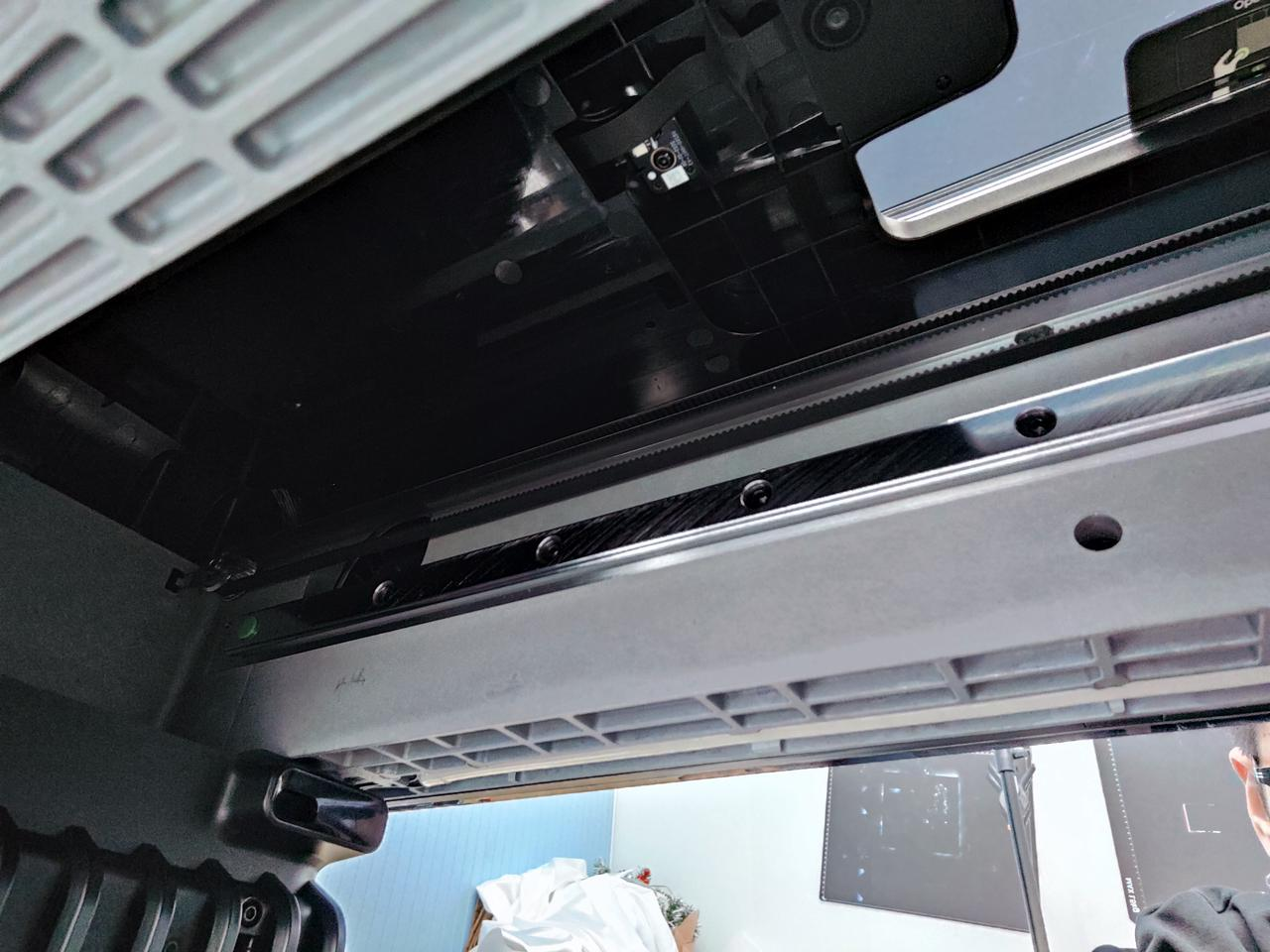

Inside the crossbeam
|
|
Periodically regular friction noise
|
Harsh, irregular noise caused by lack of lubrication or abnormal motor and guide rail
|
|
Y-axis
|
During the process of taking photos and printing
|

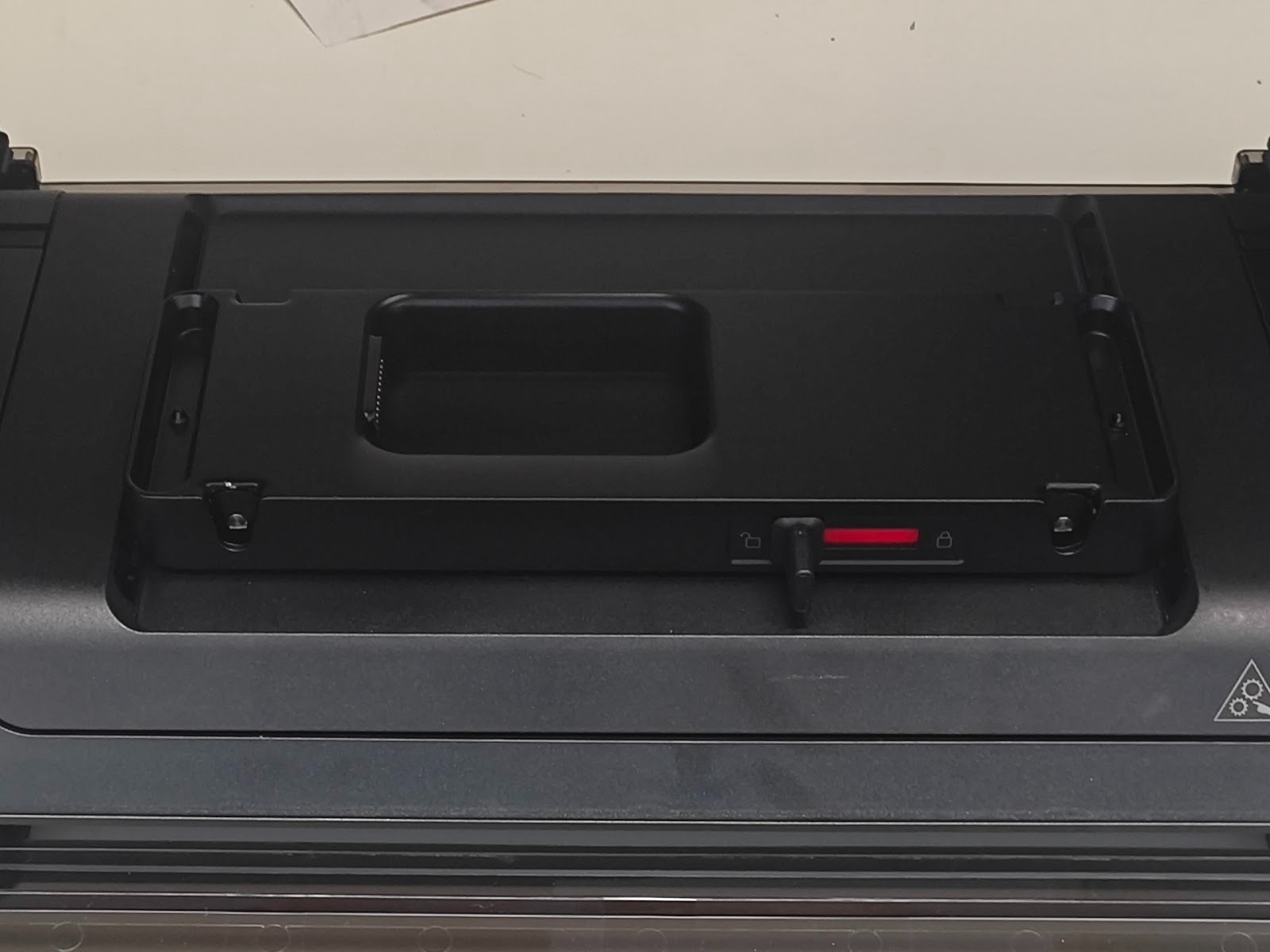

Below the platform board
|
|
|
Z-axis
|
During the process of taking photos and printing
|

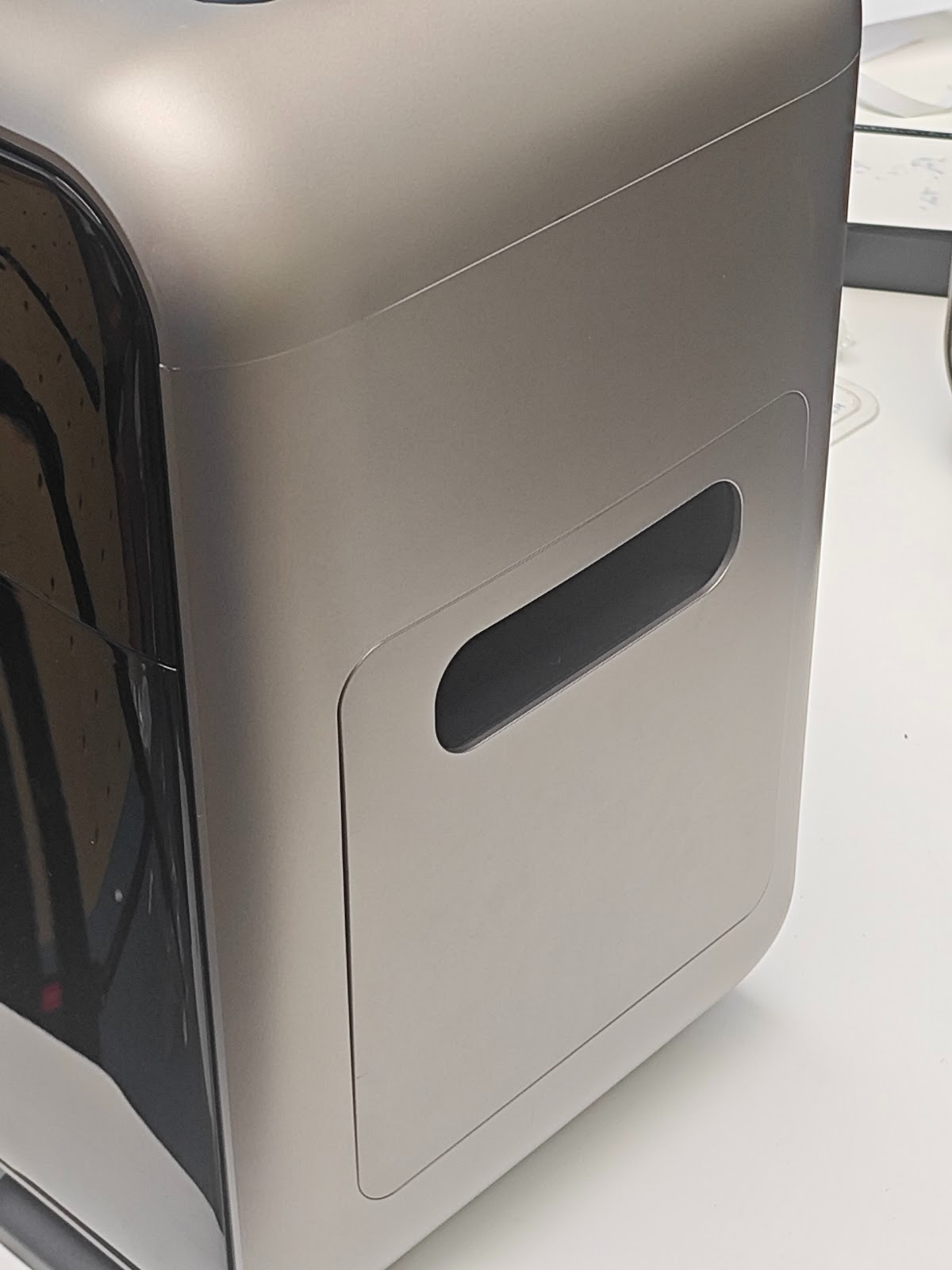

At the striped covers on both sides
|
|
|
Solenoid Valve
|
Scraper
|
Before preparing to print, during nozzle maintenance
|

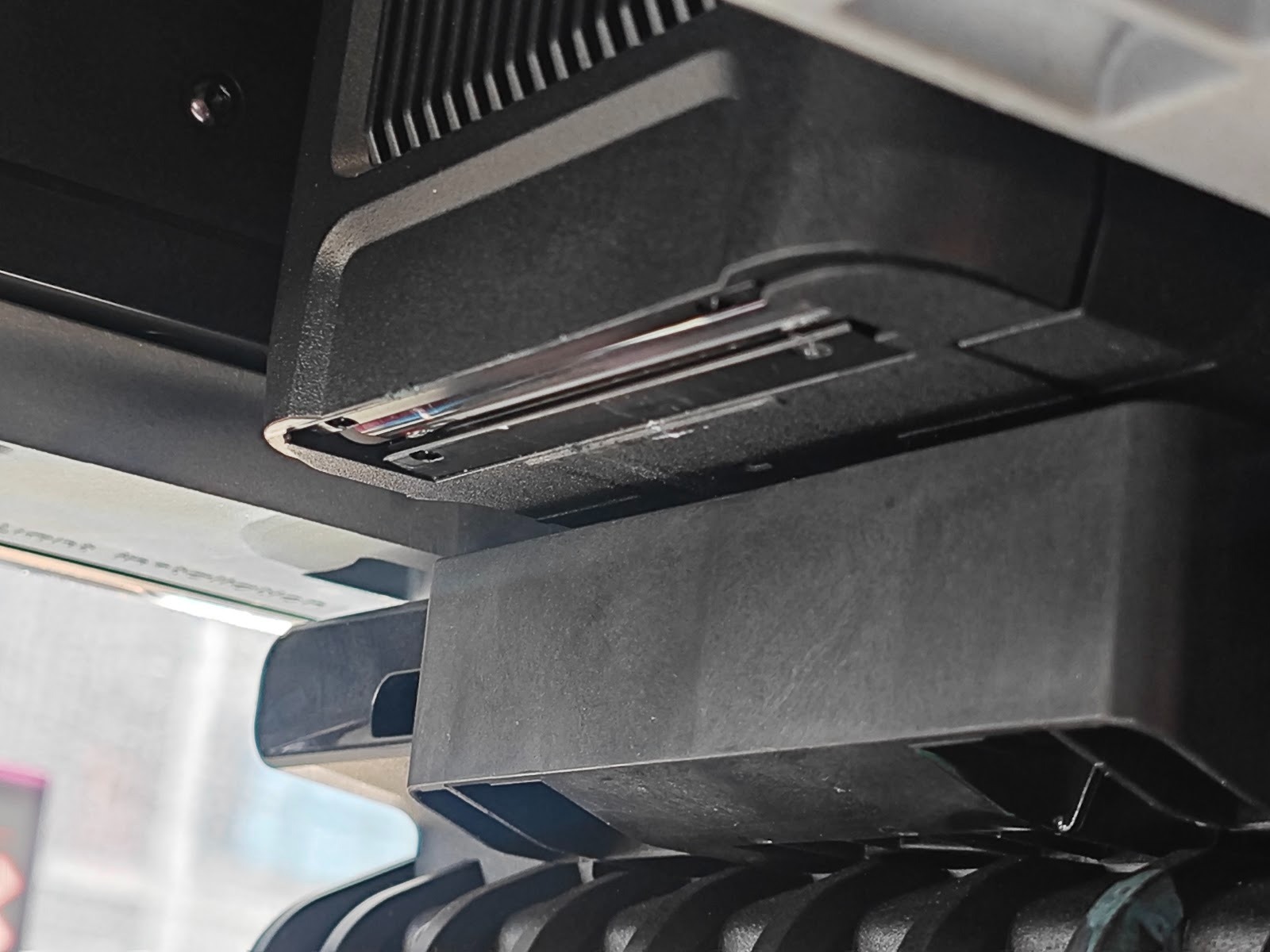

Below the nozzle
|
|
A distinct "click" sound
| |
|
Ink path switching
|
Before maintenance, before ink extraction
|
Spray Head
|
|
pump
|
Waste Ink Pump
|
Before printing, complete maintenance
|
Below the cleaning box
|
|
Regular, motor-like vibrations
|
Abnormal noise is generated due to motor damage or ink path blockage
|
|
Cleaning Fluid Pump
/ Moisturizing Fluid Pump
|
When filling cleaning solution and moisturizing lotion
|
Below the cleaning box
|
Support Contact
The theoretical decibel value of the above sounds at a distance of 1M or more should not exceed 60dB at most. If there are sounds that exceed the listed types or abnormal high-frequency and high-decibel noises, please contact eufyMake Customer Support at support@eufymake.com and include the following information:
