Rotary attachment replacement process
Flatbed replacement process

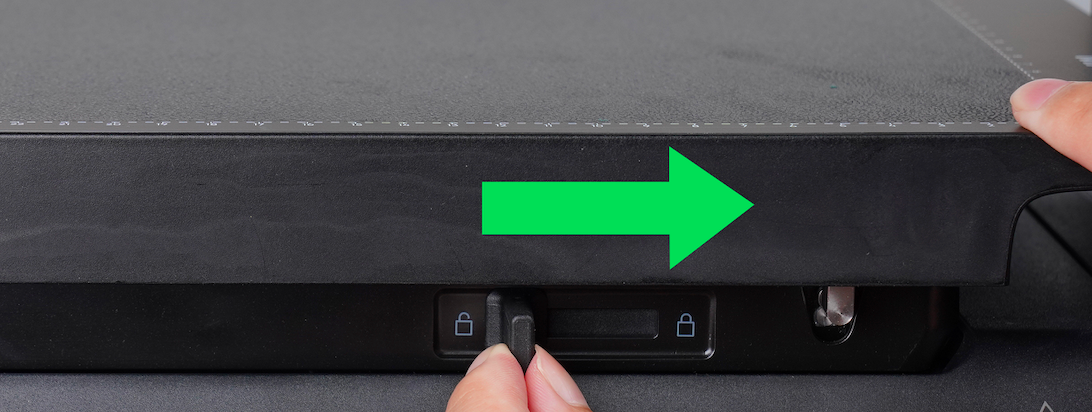

Step 1 - Find the bottom lever and slide it to unlock the flatbed
Find the switch at the bottom of the platform and slide it to the unlock icon to unlock the flatbed.

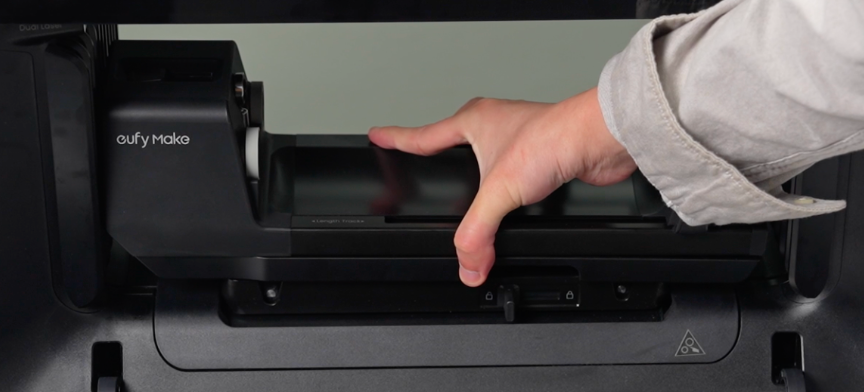

Step 2 - Remove the flatbed
After unlocking, hold the flatbed tightly and pull it vertically upward. Remove the flatbed.
Step 3 - Flatbed Installation
When installing the flatbed, locate the recessed slot in the printer base, align it with the raised area on the bottom of the flatbed, and then carefully insert the flatbed into the slot.

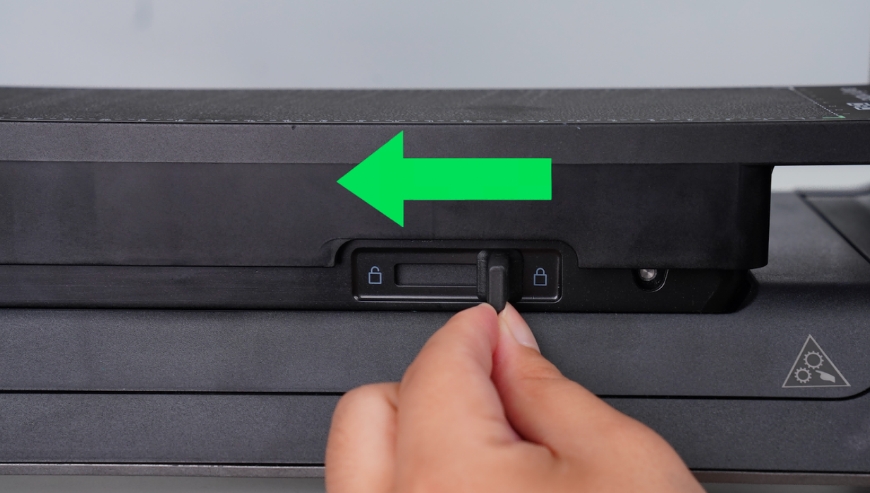

Step 4 - Lock the lever on the device
⚠️Caution: If the flatbed is locked without being placed level, the platform plate may be damaged! Please make sure that the flatbed is placed correctly before locking it.
Slide the switch to the locked position to secure the flatbed. Gently try to move the flatbed to ensure it is securely locked in place.
Rotary attachment replacement process
Step 1 - Find the bottom lever and slide it to unlock the original accessories
Locate the switch at the bottom of the platform and slide it to the unlocked position to release the currently installed print accessory.
Step 2 - Remove the existing print accessory from the device
After unlocking, hold the platform firmly and lift it vertically to remove it.
Step 3 - Align the base of the rotary tool with the base of the device, align the mounting interface, and install
When installing the rotary tool accessory, locate the recessed slot in the printer base and align it with the raised area on the bottom of the rotary tool.
Step 4 - Lock the lever on the device
Slide the switch to the locked position to secure the rotary tool. Gently try to move the tool to ensure it is securely locked in place.
