The laminating machine supports a range of official substrates, as outlined below.
|
Indicates
|
Category
|
Subcategory
|
Function Description
|
Selling Point Information
|
Specification
|
|
|
Paper-based A Film
|
Standard UV DTF A Film
|
Acts as the carrier substrate for the printed pattern and provides adhesion for the design.
|
-
Paper-based A film is easy to handle and supports automatic film feeding when used with the machine.
-
White base layer allows for strong color contrast and clear, vivid pattern presentation.
|
310mm*400mm
|
|
Mini UV DTF A Film
|
Carries the printed pattern and provides adhesion, with a compact size designed for box sealing and small-format printing applications.
|
310mm*90mm
|
|
|
B Film
|
UV DTF B Film
|
Serves as the transfer medium for patterns printed on A Film.
|
-
Easy to install.
-
Supports run-out detection when used with the laminating machine.
|
Width 318
Length 30m
Inner diameter 1 inch
|
|
|
Gold Foil Film
|
Gold Foil Film
|
Combined with soft white ink, it can complete the hot stamping operation on local planar areas, enhancing the surface effect of the local areas.
|
-
Supports multiple foil textures
-
High compatibility and precision, including fine details
-
Foil is applied only to designated areas and will not transfer onto non-foil surfaces such as leather or stone
|
Width 318
Length 50m
Inner diameter 1 inch
|
|
Light Gold Foil Film
|
|
Silver Foil Film
|
|
Multi-Color Metallic Foil Film
|
Silver Metallic Foil Film
|
Silver Water-Ripple Foil Film
|
-
Non-official Consumable Specifications
The following section outlines non-official consumables, including their compatibility status and differences from official substrates.
|
indicates
|
Category
|
Subcategory
|
Specification
|
Is it compatible?
|
Differences from official substrates
|
|
|
UV DTF A FILM
|

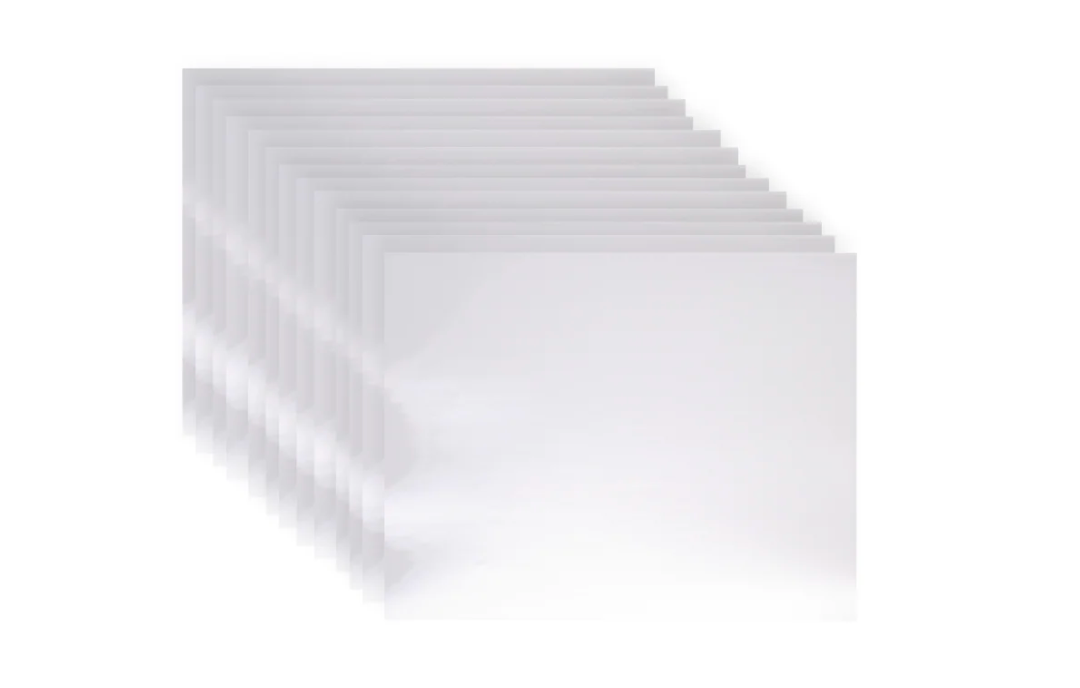

Transparent A Film
|
11.7 in x 16.5in
|
Yes
|
Requires manual forward feeding during operation.
|
|
Paper-based A Film
|
11.7 in x 16.5in
|
Yes
|
No functional difference compared to official substrates.
|
|
|

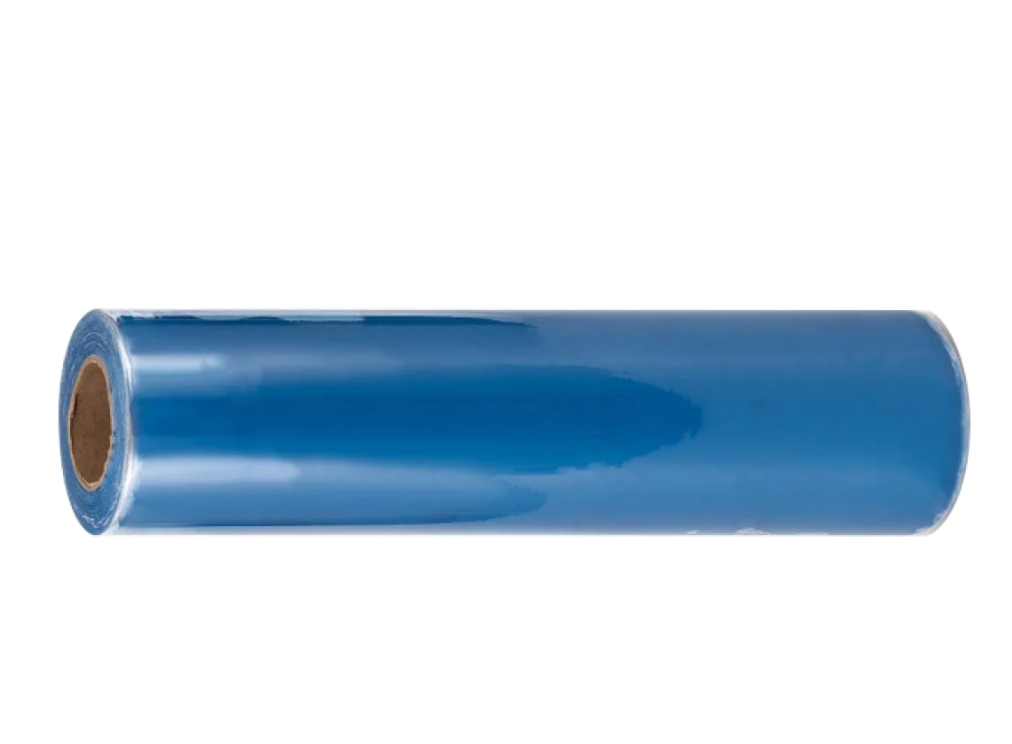

UV DTF B FILM
|
UV DTF B Film
|
12.6in x 5.91in x 5.91 in
|
No
|
Inner diameter mismatch prevents proper installation in the laminating machine.
|
|
|

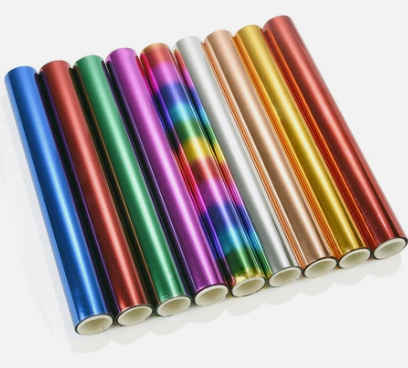

Gold foil
|
Golden hot stamping film
Gold Foil Film
|
5.9in x 4.26ft
8.3in x11.7in
12in x 10in
|
Manually Compatible
|
-
Official foil films can be directly installed and used continuously with the laminating machine.
-
Non-official foil films do not fit the machine precisely and require manual alignment before being fed through the laminator.
|
|
Light gold hot stamping film
Light Gold Foil Film
|
|
Light Silver Gold Foil Film
Silver Foil Film
|
|
Colorful laser hot stamping film
Multi-Color Metallic Foil Film
|
|
Silver laser hot stamping film
Silver Metallic Foil Film
|
|
Silver laser water ripple hot gold film
Silver Water-Ripple Foil Film
|
