The motion control system is a set of precise control equipment based on multi-axis linkage, designed to meet the requirements of high-precision printing. The system consists of three axes: X, Y, and Z.

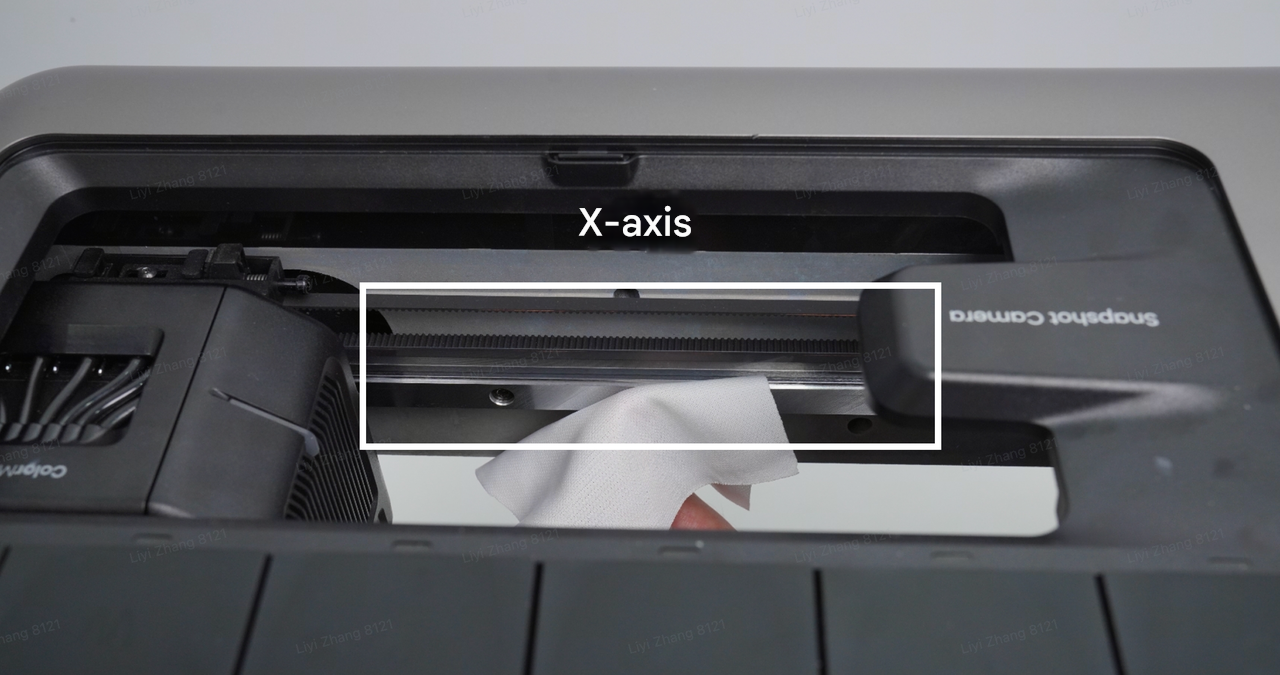

X-axis (Print head motion Axis)

1. Function

1. The X-axis controls the horizontal (left-to-right) movement of the UV print head, enabling precise coverage of the print path.

2. Structural Features:

1. Equipped with a belt and guide rail transmission structure, ensuring smooth print head movement while reducing noise and friction losses.

2. Position feedback system: The X-axis is equipped with an encoder strip to measure the print head's real-time position. In combination with the control system, this enables high-precision positioning and path repeatability.

3. Motor

1. Driven by a stepper motor, providing stable step control and response speed to meet high-precision printing requirements.

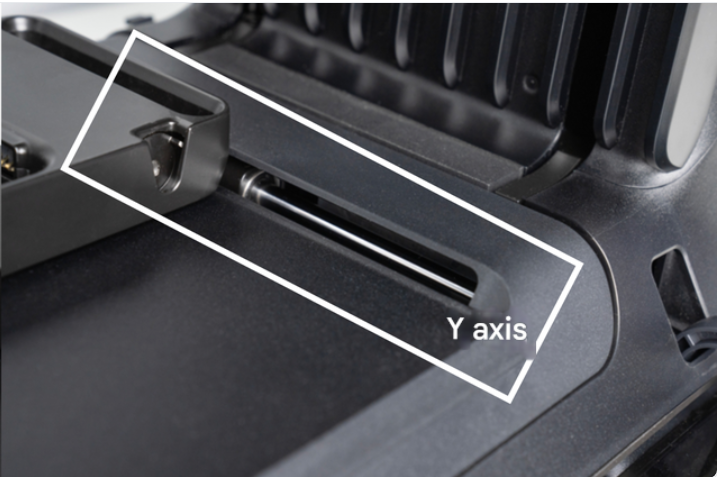

Y-axis (the axis for the platform plate to move back and forth)

1. Function:

1.  The Y-axis drives the platform plate in the front-to-back direction, ensuring the workpiece aligns accurately with the printing area and achieves uniform coverage.

2. Structural Features:

1. Uses a screw rod and guide rail transmission structure, providing high load-bearing capacity and motion accuracy, and meeting high stability requirements.

3. Motor:

1.  Also driven by a stepper motor, ensuring precise and controllable motion and supporting adjustment for different workpiece sizes and positions.

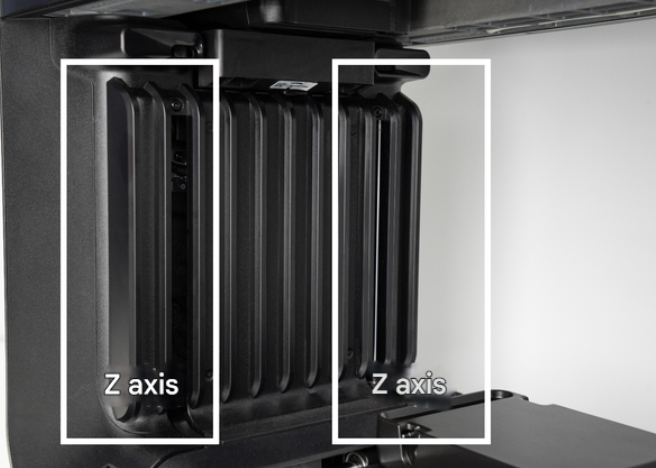

Z-axis (platform plate height adjustment axis)

1. Function:

1. The Z-axis controls the up-and-down movement of the platform plate and is used to adjust the printing height to accommodate workpieces with different thicknesses or heights.

2. Structural Features:

1. Uses a screw rod and guide rail structure to provide precise height adjustment while avoiding vibration or height deviation.

2. Combined with stepper motor drive, it supports precise height adjustment for high-precision printing.
